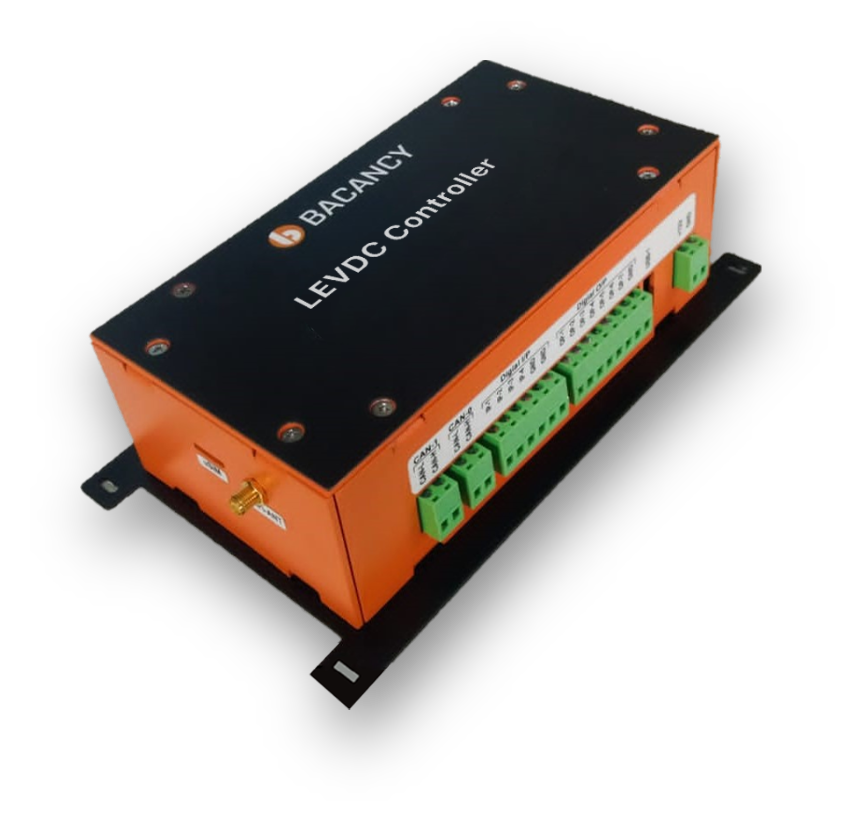

Light Electric Vehicle Direct Current ControllerBacancy's LEVDC is known for safety, efficiency, and sustainability. Our LEVDC controller Compliant with IS 17017 standards, it delivers robust charging up to 120V DC and 100A, empowering you to conquer longer distances faster. Whether you seek convenience or eco-conscious solutions, LEVDC caters to all your EV charging needs. Join the sustainable future, plug into progress, and charge ahead with Bacancy's LEVDC system.
Level up your EV experience: LEVDC - The future of EV charging is here. Bacancy's LEVDC Controller leads the EV charging industry. Compact, data-driven, and network-ready, our modern-day ingenious controller is a perfect solution for your commercial as well as residential two and three-wheeler charging needs. Simplify your charging setup and reduce your costs with our sustainable controller today!
Here's what sets LEVDC apart:
Blazing-fast charging: Experience up to 120V DC and 100A charging, significantly reducing wait times.
Unmatched safety: Built to comply with stringent IS 17017 standards, ensuring complete peace of mind.
Future-proof flexibility: Compatible with a wide range of EVs, accommodating your needs today and tomorrow.
Sustainable design: Minimize your environmental impact with intelligent energy management.
Unwavering reliability: Count on consistent, dependable performance, day in and day out.
| Parameters | Specifications |
|---|---|
| Input Supply | 12V DC@2A |
| Type of Connector support | LEVDC Conformity in surface design with CNS 16127 |
| Standard | IS 17017 (Part 2/Sec 6): 2021 (Standard) |
| Charger and Vehicle Communication | CAN 2.0 |
| HMI | RS-485 (Modbus RTU Slave) |
| Power Module Interface | CAN 2.0 |
| Insulation Monitoring Device | I/O Monitoring |
| Power Measurement | RS-485 (Modbus RTU Master) |
| RFID | MF RC522, 13.52 MHZ |
| Network Connection | Ethernet 10/100 | LTE (4G fallback to 2G) | WiFi 802.11 b/g/n (802.11n up to 150 Mbps) |
| OCPP | Support OCPP1.6J, Upgradeable to OCPP 2.0.1 |
| Digital Input | 4 Nos. (12V Logic) |
| Digital Output | 6 Nos. (Open Collector) |
| Temperature Input | 4 x RTD |
| Vehicle lock | Capable of engaging the firearm's lock mechanism |
| LED | Available using external LED Interface Board |
| Storage | In-built SD Card up to 32 GB for Data Storage |
| Operating Temperature | -10°C~+70°C |
| Dimension | 210x120x59mm |
Compliant with IS 17017 (Part 2/Sec 6) : 2021
Supports Single Gun
Support RFID for Vehicle Authentication
Supports E-Control GUN Locking System
Interface to Display Charging Data over Modbus
Support OCPP1.6J and upgradable to OCPP 2.0.1
